braindecode.models.EEGSym#

class braindecode.models.EEGSym(n_chans=None, n_outputs=None, n_times=None, chs_info=None, input_window_seconds=None, sfreq=None, filters_per_branch=12, scales_time=(500, 250, 125), drop_prob=0.25, activation=<class 'torch.nn.modules.activation.ELU'>, spatial_resnet_repetitions=5, left_right_chs=None, middle_chs=None)[source]#

EEGSym from Pérez-Velasco et al (2022) [eegsym2022].

Convolution Channel

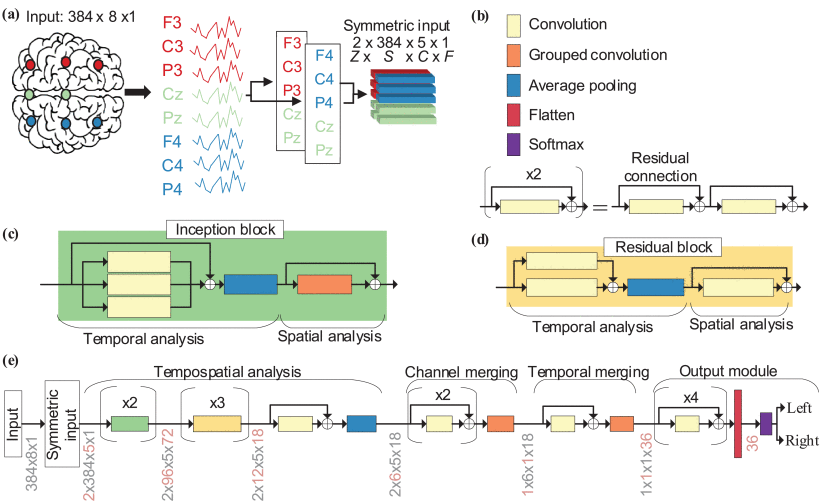

EEGSym Architecture

The EEGSym is a novel Convolutional Neural Network (CNN) architecture designed for Motor Imagery (MI) based Brain-Computer Interfaces (BCIs), primarily aimed at overcoming inter-subject variability and significantly reducing BCI inefficiency [eegsym2022].

The architecture integrates advances from Deep Learning (DL), complemented by Transfer Learning (TL) techniques and Data Augmentation (DA), to achieve strong performance in inter-subject MI classification [eegsym2022].

Architectural Overview

EEGSym systematically incorporates three core features:

  1. Inception Modules for multi-scale temporal analysis [eegsym2022].

  2. Residual Connections maintain spatio-temporal signal structure and enable deeper feature extraction [eegsym2022].

  3. A Siamese-network design exploits the inherent symmetry of the brain across the mid-sagittal plane [eegsym2022].

Macro Components

  • EEGSym.symmetric_division (Input Processing)
    • Operations. The input is virtually split into left, right, and middle channels.

      Middle (central) channels are duplicated and concatenated to both left and right lateralized electrodes to form the two hemisphere inputs [eegsym2022].

    • Role. Prepares the data for the siamese-network approach,

      reducing the number of parameters in the spatial filters for the tempospatial analysis stage [eegsym2022].

  • EEGSym.inception_block (Tempospatial Analysis - Temporal Feature Extraction)

    • Operations. Uses _InceptionBlock modules, which apply parallel temporal convolutions with different kernel sizes (scales) [eegsym2022]. This is followed by concatenation, residual connections, and average pooling for temporal dimensionality reduction [eegsym2022].

    • Role. Captures detailed temporal relationships in the architecture, similarly to EEGInceptionMI [eeginception2020]. The first block uses large temporal kernels (e.g., 500 ms, 250 ms, 125 ms) [eegsym2022].

  • EEGSym.residual_blocks (Tempospatial Analysis - Spatial Feature Extraction)

    • Operations. Composed of multiple _ResidualBlock modules (typically three instances) [eegsym2022]. Each block applies temporal convolution, pooling, and a spatial analysis layer (convolution or grouped convolution) [eegsym2022].

    • Role. Enhances spatial feature extraction by incorporating residual

      connections across all CNN stages, which helps maintain the spatio-temporal structure of the signal through deeper layers [eegsym2022].

  • EEGSym.channel_merging (Hemisphere Merging)

    • Operations. The _ChannelMergingBlock reduces the spatial dimensionality (Z and C) to 1, performing two residual convolutions followed by a final grouped convolution that merges the feature information from the two hemispheres [eegsym2022].

    • Role. Extracts complex relationships between channels of both hemispheres as part of the symmetry exploitation [eegsym2022].

  • EEGSym.temporal_merging (Temporal Collapse)

    • Operations. The _TemporalMergingBlock uses residual convolution followed by grouped convolution to reduce the temporal dimension (S) to 1 [eegsym2022].

    • Role. Final step of temporal aggregation before the output module [eegsym2022].

  • EEGSym.output_blocks (Output Processing)

    • Operations. The _OutputBlock applies four residual convolution iterations (1x1x1 convolutions) followed by flattening [eegsym2022].

    • Role. Final feature refinement through residual connections before the fully connected classification layer [eegsym2022].

How the information is encoded temporally, spatially, and spectrally

  • Temporal.

    Temporal features are extracted across multiple scales in the inception modules using different temporal convolution kernel sizes (e.g., corresponding to 500 ms, 250 ms, and 125 ms windows for a 128 Hz sampling rate), very similar to [eeginception2020]. Subsequent pooling operations and residual blocks continue to reduce the temporal dimension [eegsym2022].

  • Spatial.

    Spatial features are extracted via two main mechanisms:

    • (1) The siamese-network design implicitly introduces brain symmetry by treating the two hemispheres equally during feature extraction [eegsym2022].

    • (2) Residual connections are utilized in the Tempospatial Analysis stage to enhance the extraction of spatial correlations between electrodes [eegsym2022].

  • Spectral.

    Spectral information is implicitly captured by the varying kernel sizes of the temporal convolutions in the inception modules [eegsym2022]. These kernels filter the signal across different temporal windows, corresponding to different frequency characteristics.

Parameters:

  • n_chans (int) – Number of EEG channels.

  • n_outputs (int) – Number of outputs of the model. This is the number of classes in the case of classification.

  • n_times (int) – Number of time samples of the input window.

  • chs_info (list of dict) – Information about each individual EEG channel. This should be filled with info["chs"]. Refer to mne.Info for more details.

  • input_window_seconds (float) – Length of the input window in seconds.

  • sfreq (float) – Sampling frequency of the EEG recordings.

  • filters_per_branch (int, optional) – Number of filters in each inception branch. Should be a multiple of 8. Default is 12 [eegsym2022].

  • scales_time (tuple of int, optional) – Temporal scales (in milliseconds) for the temporal convolutions in the first inception module. Default is (500, 250, 125) [eegsym2022].

  • drop_prob (float, optional) – Dropout probability. Default is 0.25 [eegsym2022].

  • activation (type[nn.Module], optional) – Activation function class to use. Default is nn.ELU [eegsym2022].

  • spatial_resnet_repetitions (int, optional) – Number of repetitions of the spatial analysis operations at each step. Default is 5 [eegsym2022].

  • left_right_chs (list of tuple of str, optional) – List of tuples pairing left and right hemisphere channel names, e.g., [('C3', 'C4'), ('FC5', 'FC6')]. If not provided, channels are automatically split into left/right hemispheres using division_channels_idx() and match_hemisphere_chans(). Must be provided together with middle_chs [eegsym2022].

  • middle_chs (list of str, optional) – List of midline (central) channel names that lie on the mid-sagittal plane, e.g., ['FZ', 'CZ', 'PZ']. These channels are duplicated and concatenated to both hemispheres. If not provided, channels are automatically identified using division_channels_idx(). Must be provided together with left_right_chs [eegsym2022].

Raises:

ValueError – If some input signal-related parameters are not specified: and can not be inferred.

Notes

  • EEGSym achieved competitive accuracies across five large MI datasets [eegsym2022].

  • The model maintained high accuracy using a reduced set of electrodes (8 or 16 channels) [eegsym2022].

  • This is PyTorch implementation of the EEGSym model of the TensorFlow original [eegsym2022code].

References

[eegsym2022] (1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33)

Pérez-Velasco, S., Santamaría-Vázquez, E., Martínez-Cagigal, V., Marcos-Martínez, D., & Hornero, R. (2022). EEGSym: Overcoming inter-subject variability in motor imagery based BCIs with deep learning. IEEE Transactions on Neural Systems and Rehabilitation Engineering, 30, 1766-1775.

[eegsym2022code]

Pérez-Velasco, S., EEGSym source code. Serpeve/EEGSym

[eeginception2020] (1,2)

Santamaría-Vázquez, E., Martínez-Cagigal, V., Vaquerizo-Villar, F., & Hornero, R. (2020). EEG-Inception: A novel deep convolutional neural network for assistive ERP-based brain-computer interfaces. IEEE Transactions on Neural Systems and Rehabilitation Engineering, 28, 2773-2782.

Methods

forward(x)[source]#

Forward pass.

Parameters:

x (torch.Tensor) – Input tensor of shape (batch_size, n_channels, n_times).

Returns:

Output tensor of shape (batch_size, n_classes).

Return type:

torch.Tensor
